Your are here: Home >> Products >>Stainless Steel Horizontal Centrifuger
Stainless steel horizontal centrifuger belongs to automatic-discharge perforated wall centrifuge. It feeds, separates and discharges automatically. It is suitable for processing the product whose suspension density range is 20-60% and solid particle size is ≥0.1mm. It is especially used in the production of fruit and vegetable juice, sugar, soya product, etc. The specification of the filter is 60 eyes * 0.18mm with the material of stainless steel (The specification of the filter can be changed according to different product).
Directory
- Usages of Stainless Steel Horizontal Centrifuger
- Characteristics of Stainless Steel Horizontal Centrifuger
- Technical Parameters of Stainless Steel Horizontal Centrifuger
- Stainless Steel Horizontal Centrifuger Finished Picture
Usages of Stainless Steel Horizontal Centrifuger
Stainless steel horizontal centrifuger is suitable for separation of solid phase particle size greater than 0.1 mm, and the concentration range in 10-75% of the suspension. It is widely used in chemical industry, salt, alkali production, environmental protection, etc.
Characteristics of Stainless Steel Horizontal Centrifuger
1、The solid phase in 10-80% concentration, solid phase particles, 0.05 5 mm in diameter (0.2 2 mm works best) within the scope of the linear or crystalline solids, can greatly reduce the cost of material thermal drying;
2、LWL350, 450 for the base installation form, easy installation and moving;
3、Driving part sealing machine oil groove type seals and packing seal;
4、Using temperature measuring device monitoring bearing temperature rise;
5、The machine continuous feed, continuous discharge, large capacity, compact structure, cover an area of an area small, easy installation and maintenance.
2、LWL350, 450 for the base installation form, easy installation and moving;
3、Driving part sealing machine oil groove type seals and packing seal;
4、Using temperature measuring device monitoring bearing temperature rise;
5、The machine continuous feed, continuous discharge, large capacity, compact structure, cover an area of an area small, easy installation and maintenance.
Technical Parameters of Stainless Steel Horizontal Centrifuger
|
Model |
GG-350 |
GG-450 |
|
Try Water(m³/h) |
10 |
15 |
|
Power Of the Moter |
11kw |
22KW |
|
Rotate speed |
3000(r/min) |
2600(r/min) |
|
Distributed parameter |
1770(w³r/g) |
1702(w³r/g) |
|
Dimension |
1455*1250*1275 |
1550*1400*1350 |
|
Material quality |
304# stainless steel |
304# stainless steel |
Notes:
1. The technical parameters of stainless steel horizontal centrifuger in the chart are standard configuration. Any specific requirements, please let us know.

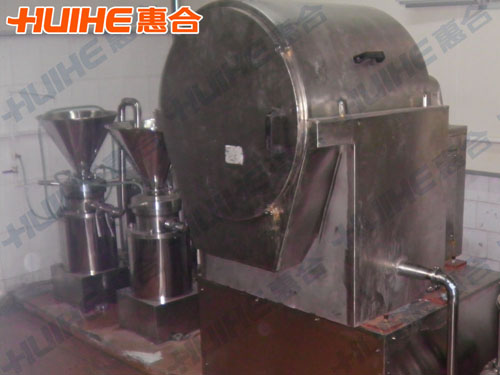

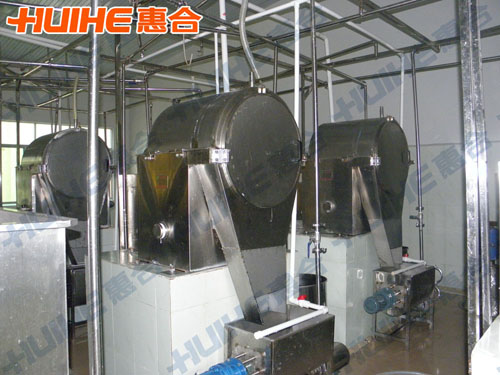

Stainless Steel Horizontal Centrifuger Finished Picture
